100023607 | Telegärtner

Coaxial adapter, 75 Ω, BNC plug to BNC plug, straight, 100023607

Order No.: 78F276
EAN: 4018359106133
MPN:
100023607
J01005A1230
Series: COAX

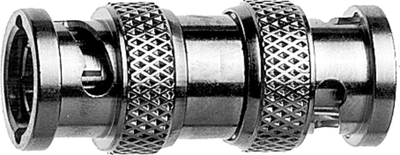

100023607 Telegärtner Coaxial Adapters Image 1
100023607 Telegärtner Coaxial Adapters Image 2
Image may differ
Unit Price (€ / pc.)
7.8897 € *
Available: 8 pcs.
Total Price:
7.89 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8897 €
10 pcs.
7.3304 €
25 pcs.
6.8425 €
50 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01005A1230, Telegärtner

BNC-Plug to BNC-Plug

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC-Adapter (m-m)
  • Mating life ≥ 500
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 75 Ω
Technical specifications
Filter Property Value
Impedance 75 Ω
Connector BNC plug
Connector (exit) BNC plug
Design straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
