100023591 | Telegärtner

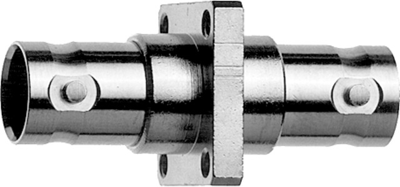

Coaxial adapter, 50 Ω, BNC socket to BNC socket, straight, 100023591

Order No.: 78F278
EAN: 4018359105938
MPN:
100023591
J01004A1231
Series: COAX
100023591 Telegärtner Coaxial Adapters
Image may differ
Unit Price (€ / pc.)
9.7223 € *
Available: 12 pcs.
Total Price:
9.72 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7223 €
10 pcs.
9.0321 €
25 pcs.
8.4252 €
50 pcs.
7.6636 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01004A1231, Telegärtner

BNC-Jack to BNC-Jack

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC Bulkhead adapter (f-f)
  • Mount. dim Z05
  • Insulator-PTFE
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Impedance 50 Ω
Connector BNC socket
Connector (exit) BNC socket
Design straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
