100023585 | Telegärtner

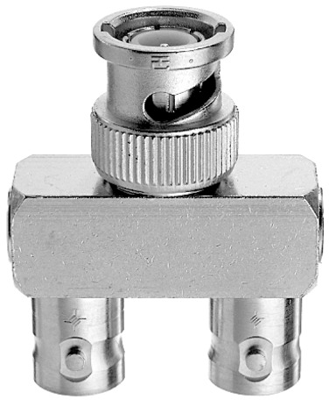

Coaxial adapter, 50 Ω, BNC plug to 2 x BNC socket, Y-shape, 100023585
Order No.: 78F2926
EAN: 4018359105860
MPN:
100023585
J01004A0009
This item is no longer available.
As an alternative, we recommend the following item:
Coaxial adapter, 50 Ω, BNC plug to 2 x BNC socket, Y-shape, 100123516
Order No.: 78F404
Manufacturer: Telegärtner
per pc. 23.3835 € *
Coaxial adapter, J01004A0009, Telegärtner
BNC-Plug to 2x BNC-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC Y-Adapter (f-m-f)
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: Y-Shape
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC plug | |
| Connector (exit) | 2 x BNC socket | |
| Design | Y-shape |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
