100023581 | Telegärtner

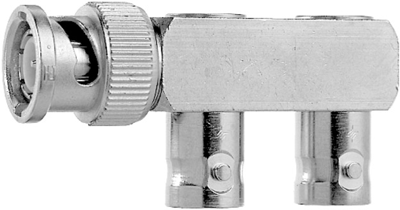

Coaxial adapter, 50 Ω, BNC plug to 2 x BNC socket, T-shape, 100023581
Unit Price (€ / pc.)
27.8460 € *
Available: 3 pcs.
Total Price:
27.85 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8460 €
5 pcs.
26.4061 €
10 pcs.
24.7044 €
25 pcs.
22.5267 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial adapter, J01004A0002, Telegärtner
BNC-Plug to 2x BNC-Jack
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
FEATURES
- BNC (m-f-f)
- Mating life ≥ 500
- Max. Frequency 4 GHz
Technical Data
- Design: T-Shape
- Impedance: 50 Ω
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | BNC plug | |
| Connector (exit) | 2 x BNC socket | |
| Design | T-shape |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
