100024828 | Telegärtner

SMA-attenuator, 50 Ω, 3 dB, 10 GHz, 2 W, 100024828

Order No.: 80F1628
EAN: 4018359364434
MPN:
100024828
J01156A0011
Series: COAX

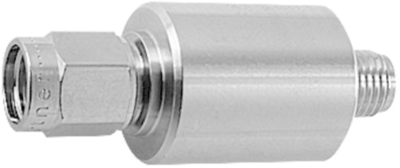

100024828 Telegärtner Antenna components, switches, attenuators Image 1

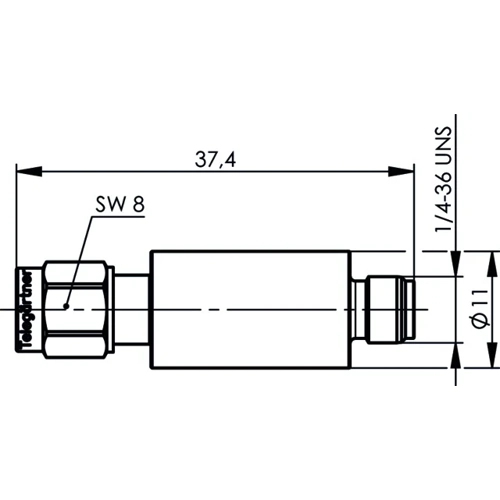

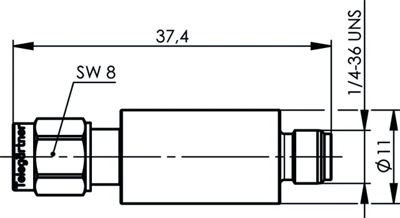

100024828 Telegärtner Antenna components, switches, attenuators Image 2
Image may differ
Unit Price (€ / pc.)
69.8292 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
69.83 € *
Price list
Quantity
Price per unit*
1 pcs.
69.8292 €
2 pcs.
65.3310 €
5 pcs.
61.3683 €
10 pcs.
57.0486 €
*incl. VAT plus shipping costs
Subject to prior sale

SMA attenuator, 100024828, Telegärtner

The SMA is a very popular coax connector with threaded coupling, and can be used up to 10 GHz frequencies, features 50 Ω impedance. SMA applications include communications, satellite and test equipment.

Technical specifications
Filter Property Value
Product type attenuator
Connector SMA
Impedance 50 Ω
Damping 3 dB
max. frequency 10 GHz
Power 2 W
Logistics
Property Value
Country of origin DE
Customs tariff number 85332100
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
