100024562 | Telegärtner

7/16-terminating resistor, 50 Ω, 7.5 GHz, 10 W, 100024562

Order No.: 80F1534
EAN: 4018359303341
MPN:
100024562
J01124A0004
Series: COAX

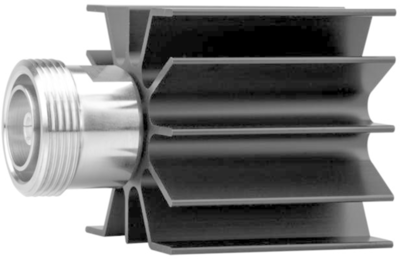

100024562 Telegärtner Antenna components, switches, attenuators Image 1

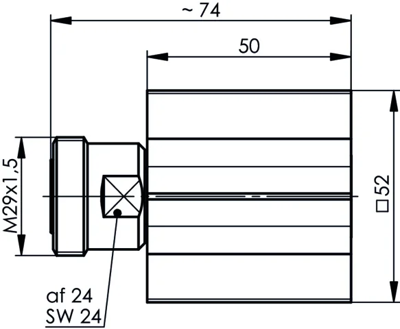

100024562 Telegärtner Antenna components, switches, attenuators Image 2
Image may differ
Unit Price (€ / pc.)
99.3650 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
99.37 € *
Price list
Quantity
Price per unit*
1 pcs.
99.3650 €
2 pcs.
94.7835 €
5 pcs.
90.5947 €
10 pcs.
84.3948 €
*incl. VAT plus shipping costs
Subject to prior sale

7-16 termination load, 100024562, Telegärtner

The 7-16 termination load is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling, features 50 Ω impedance. Applications for this connector is typically a radio base station interconnection and test equipment where vibration resistance and environmental protection is required. Special design techniques for this connector have resulted in previously unattainable levels of performance in regard to return loss (VSWR) and intermodulation distortion. 7-16 connector allows high-power, high-frequency transmission in coaxial lines.

Technical specifications
Filter Property Value
Impedance 50 Ω
Connector 7/16
Power 10 W
Product type terminating resistor
max. frequency 7.5 GHz
Logistics
Property Value
Customs tariff number 85332100
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
