100024560 | Telegärtner

Telegärtner J01124A0002, 100024560

Order No.: 80F1532
EAN: 4018359303327
MPN:
100024560
J01124A0002
Series: COAX

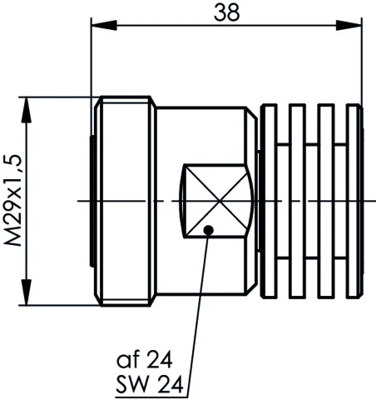

100024560 Telegärtner Antenna components, switches, attenuators Image 1

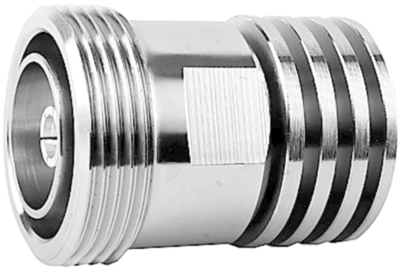

100024560 Telegärtner Antenna components, switches, attenuators Image 2
Image may differ
Unit Price (€ / pc.)
92.2488 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
92.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
92.2488 €

7-16 termination load, 100024560, Telegärtner

The 7-16 termination load is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling, features 50 Ω impedance. Applications for this connector is typically a radio base station interconnection and test equipment where vibration resistance and environmental protection is required. Special design techniques for this connector have resulted in previously unattainable levels of performance in regard to return loss (VSWR) and intermodulation distortion. 7-16 connector allows high-power, high-frequency transmission in coaxial lines.

Technical specifications
max. frequency 7.5 GHz
Connector 7/16
Power 2 W
Impedance 50 Ω
Logistics
Country of origin DE
Customs tariff number 85332100
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
