100024161 | Telegärtner

N-attenuator, 50 Ω, 14 dB, 1 GHz, 1 W, 100024161

Order No.: 80F1369
EAN: 4018359220501
MPN:
100024161
J01026A0008
Series: COAX
100024161 Telegärtner Antenna components, switches, attenuators Image 1
100024161 Telegärtner Antenna components, switches, attenuators Image 2
Image may differ
Unit Price (€ / pc.)
66.0093 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
66.01 € *
Price list
Quantity
Price per unit*
1 pcs.
66.0093 €
2 pcs.
61.7610 €
5 pcs.
58.0125 €
10 pcs.
53.9308 €
*incl. VAT plus shipping costs
Subject to prior sale

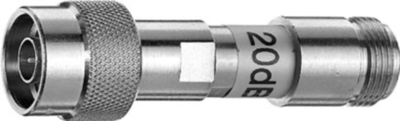

N attenuator, 100024161, Telegärtner

The N attenuator is a very popular coax connector. It is a medium sized, precision, weatherproof connector supplied with a screw coupling. In some applications this connector can be used up to 1 GHz, features 50 Ω impedance. Special design techniques for this product have resulted in excellent levels of performance with regard go return loss (VSWR) and intermodulation distortion.

Technical specifications
Filter Property Value
Product type attenuator
Connector N
Impedance 50 Ω
Damping 14 dB
max. frequency 1 GHz
Power 1 W
Logistics
Property Value
Country of origin GB
Customs tariff number 85332100
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
