100023849 | Telegärtner
R TNC-terminating resistor, 50 Ω, 6 GHz, 1 W, 100023849
Unit Price (€ / pc.)
81.5626 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
81.56 € *
Price list
Quantity
Price per unit*
1 pcs.
81.5626 €
2 pcs.
76.3028 €
5 pcs.
71.6737 €
10 pcs.
66.6281 €
*incl. VAT plus shipping costs
Subject to prior sale

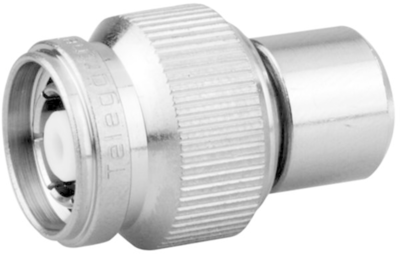

R-TNC termination load, 100023849, Telegärtner
R-TNC connector is supplied with a threaded coupling, is vibration resistant and can be used up to frequencies of over 6 GHz. The impedance is controlled at 50 Ω. Reverse-polarised connectors are mainly used in WLAN applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | R TNC | |
| Power | 1 W | |
| Product type | terminating resistor | |
| max. frequency | 6 GHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
