100022965 | Telegärtner
Junction box, Cat 6A, for AMJ-S, 100022965
Unit Price (€ / pc.)
18.6116 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

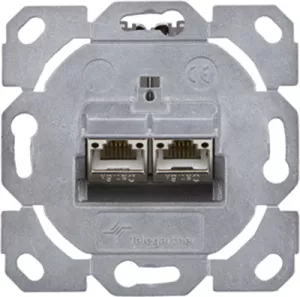

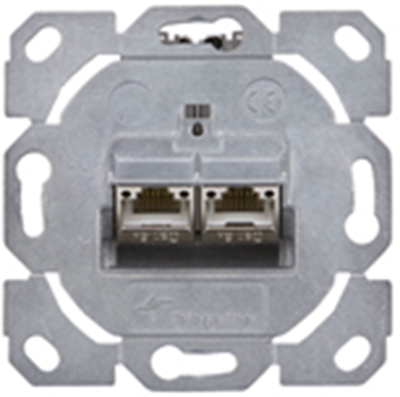

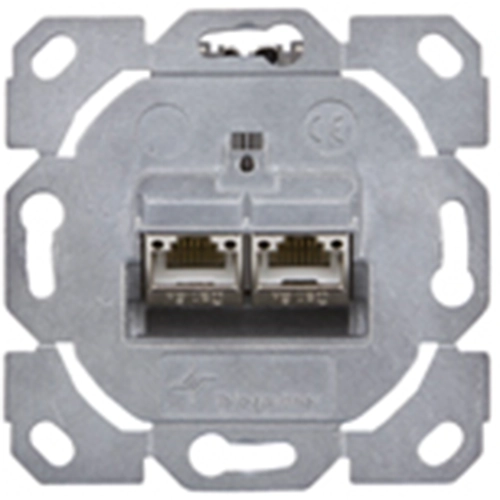

Junction box, 100022965, Telegärtner
Design capable module carrier AMJ-S flex including 2 AMJ-S Modules Cat.6A T568B.
Features
- 10 Gigabit Ethernet compliant (IEEE 802.3an)
- Contact overbend protection: ≥ 750 mating cycles with RJ45/RJ11/RJ12 plugs
- Suitable for PoE+ in accordance with IEEE 802.3at
- With design-capable module holder AMJ-S Up/0 flex
- Fits into faceplates of leading manufacturers
- Integrated cable clamp for cable diameters up to 9 mm

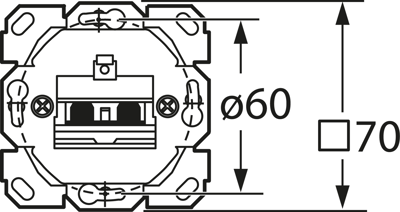

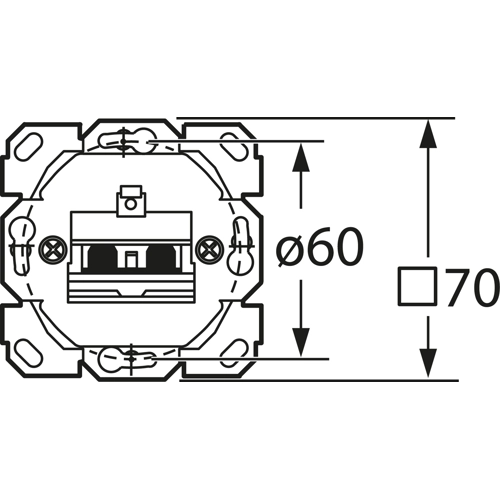

- Universal installation dimension available worldwide for mounting cut-outs 19.3 x 14.7 mm
- Visually monitored testing of the RJ45 contact heights
- Concealed installation possible
Technical specifications
| Connection | Schneidklemmanschluss | |
| Suitable for | AMJ-S | |
| Category | Cat 6A | |
| Assembly | Unterputzmontage | |
| Product type | Anschlussdose |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
