100022964 | Telegärtner
Junction box, Cat 6A, for AMJ-S, 100022964
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
25.7873 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
25.79 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7873 €
2 pcs.
24.1213 €
5 pcs.
22.6695 €
10 pcs.
21.0630 €
*incl. VAT plus shipping costs
Subject to prior sale

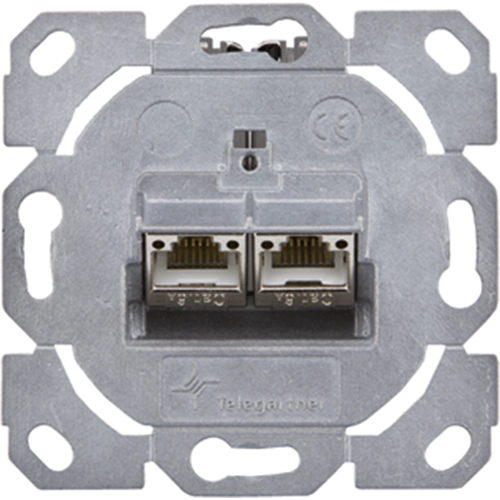

Junction box, 100022964, Telegärtner
Design capable module carrier AMJ-S flex including 2 AMJ-S Modules Cat.6A T568A.
Features
- 10 Gigabit Ethernet compliant (IEEE 802.3an)
- Contact overbend protection: ≥ 750 mating cycles with RJ45/RJ11/RJ12 plugs
- Suitable for PoE+ in accordance with IEEE 802.3at
- With design-capable module holder AMJ-S Up/0 flex
- Fits into faceplates of leading manufacturers
- Integrated cable clamp for cable diameters up to 9 mm
- Universal installation dimension available worldwide for mounting cut-outs 19.3 x 14.7 mm
- Visually monitored testing of the RJ45 contact heights
- Concealed installation possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | junction box | |
| Suitable for | AMJ-S | |
| Category | Cat 6A | |
| Connection | IDC connection | |
| Assembly | flush mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
