KSH476M350S1U5M25K | Teapo

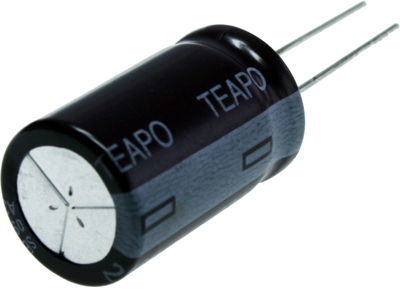

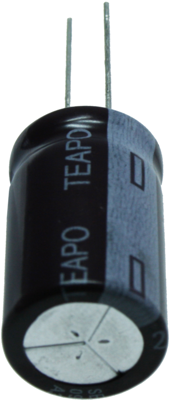

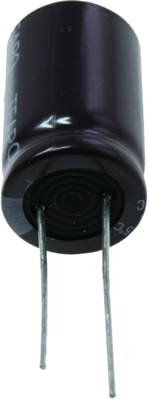

Electrolytic capacitor, 47 µF, 350 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm
Unit Price (€ / pc.)
2.7251 € *
Available: 69 pcs.
Next delivery: 100 pcs. on 2024-10-03
Leadtime: 30 Weeks **
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
1.7017 €
50 pcs.
1.4994 €
250 pcs.
1.2971 €
1000 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, KSH476M350S1U5M25K, TEAPO
Lead-Aluminum electrolytic capacitor
Features
- High CV product
- High rated voltage
- RoHS-compatible
- Long useful life
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 16 mm | |
| Capacity | 47 µF | |
| Length | 25 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -25 °C | |
| Rated voltage (DC) | 350 V | |
| Grid | 7.5 mm | |
| Ripple current | 260 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
