KSG107M160S1A5M225K | Teapo
Electrolytic capacitor, 100 µF, 160 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, KSG107M160S1A5M225K
Unit Price (€ / pc.)
2.1301 € *
Available: 164 pcs.
Leadtime: 30 Weeks **
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
1.3328 €
50 pcs.
1.1781 €
250 pcs.
1.0115 €
1000 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale

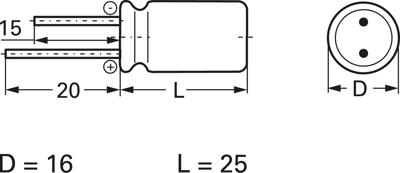

Electrolytic capacitor, insulated aluminum can, type SG.
Wire connections on one side, for vertical PCB mounting.
Rated voltage 160 VDC, type SG 160.
Technical specifications
| Rated voltage (DC) | 160 V | |
| Capacity | 100 µF | |
| diameter | 16 mm | |
| Grid | 7.5 mm | |
| Length | 25 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 475 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
