1-966067-1 | TE Connectivity
Insulated wire end ferrule, 1.0 mm², 18 mm/12 mm long, DIN 46228-4, red, 1-966067-1
Order No.: 39P3002
MPN:
1-966067-1
FER,WIRE,PL SLV,1.00/18,L12,RED,LP
Unit Price (€ / pc.)
0.1357 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1357 €
100 pcs.
0.1257 €
500 pcs.
0.1170 €
1000 pcs.
0.1094 €
*incl. VAT plus shipping costs
Subject to prior sale

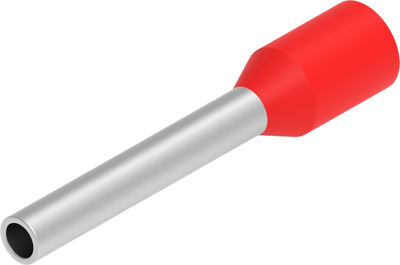

Wire end ferrule, 1-966067-1, TE Connectivity
Ferrule, Red, 17 AWG, 1 mm² Wire, 2050 CMA, 18 mm Length, Closed Barrel, Tin Plating, Bag, Discrete Wire, Stranded Wire, Partially Insulated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Cable cross-section | 1.0 mm² | |
| Standard number | DIN 46228-4 | |
| Pin lenght | 12 mm | |
| Length | 18 mm | |
| Contact material | copper | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
