TE Connectivity

1734366-1 | TE Connectivity

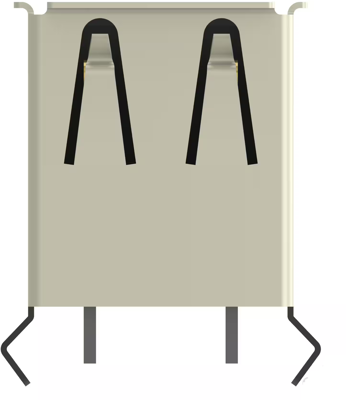

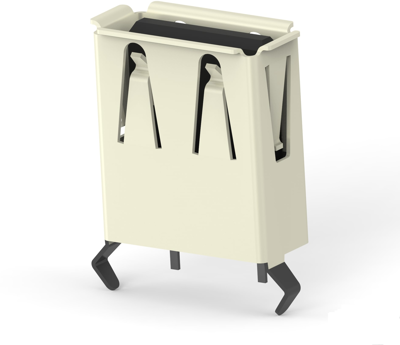

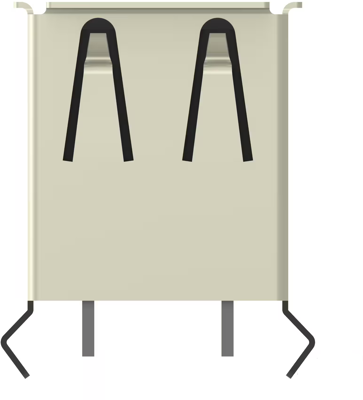

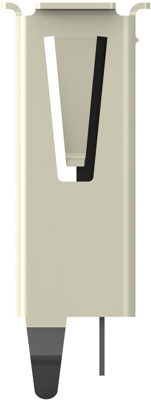

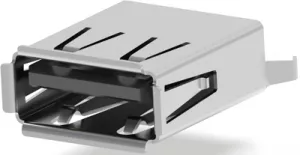

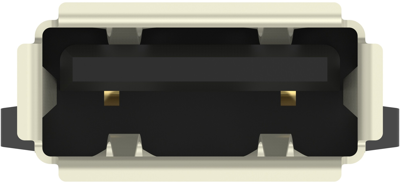

USB chassis connector type A, PCB connection, vertical

default S
default L


Total price
( 0.9282 € * / pcs.)
4.64 €
Available: 4,700 pcs.
Price per unit*
5 pcs.
0.9282 €
10 pcs.
0.8687 €
50 pcs.
0.8092 €
*incl. VAT plus shipping costs

Product by TE Connectivity at Bürklin Elektronik

A-Socket, 1734366-1, TE Connectivity

USB Connector Type: A, USB Version: 2.0, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of Mounting Legs: 2, Number of Ports: 1, Number of Positions: 4, Shell Plating Finish: Bright, Connector Profile: Standard, Shell Plating Material: Tin, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: 0.76 µm, Termination Method to Printed Circuit Board: Through Hole-Solder, Locating Posts: Without, PCB Mount Location: Top, PCB Connector Seating: Flush, PCB Mount Retention Type: Kinked Legs, Panel Mount Feature Type: Flange, Body Orientation: Vertical, Centerline (Pitch): 2 mm, 2.5 mm, Housing Color: Black, PCB Thickness (Recommended): 1.6 mm, Soldering Temperature (Max): 240 °C, Mating Cycles (Max): 1500, Operating Temperature Range: -40 – 80 °C, Halogen Free: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box & Tray,Tray, Packaging Quantity: 120

Technical Data

  • Assembly: PCB assembly
  • Pin number: 4-pole
  • USB Standard: USB 2.0
  • Contact connection: Solder connection
Technical specifications
Version A-Socket
Contact connection solder connection
Assembly PCB mounting
Pin number 4 pole
USB Standard USB 2.0
Show similar products (0)
Country of origin TH
Customs tariff number 85366990
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
