1423157-8 | TE Connectivity
Time relay, 5 to 50 s, delayed switch-on, 2 Form C (NO/NC), 120-110 VAC, 10 A/240 VAC, 1423157-8
Order No.: 71P2102
MPN:
1423157-8
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
902.9839 € *
Available in 12 Days: 8 pcs. - if ordered today

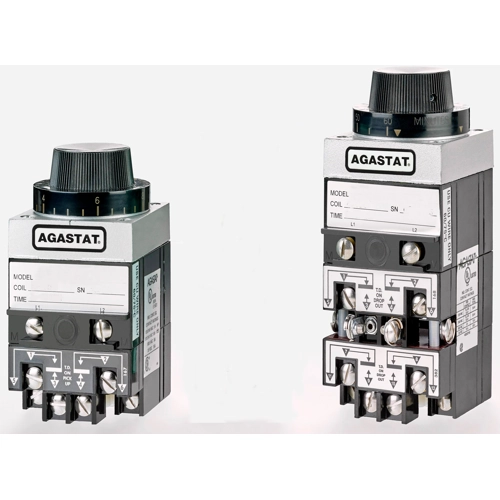

Timing relay, 1423157-8, TE Connectivity
The 1423157-8 is easy-to-reach screw terminals, on the face of the unit, clearly identified. Oversize adjustment knobs, serrated with high-resolution markings visible from all angles makes the timer easy to set timers.
Features
- Inherent transient immunity
- High performance clamping voltage characteristics
- Timer NOT polarity sensitive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 5 to 50 s | |
| Function | delayed switch-on | |
| Contact type | 2 Form C (NO/NC) | |
| Voltage | 120-110 VAC | |
| Breaking capacity | 10 A/240 VAC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364110 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
