9-2176315-3 | TE Connectivity
Resistor, thin film, SMD 0204, mini MELF, 390 kΩ, 0.4 W, ±1 %, 9-2176315-3
Unit Price (€ / pc.)
0.0274 € *
Available in 5 Days: 27,000 pcs. - if ordered today

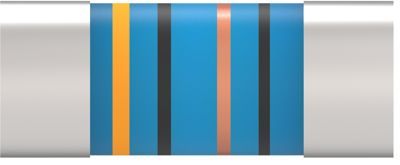

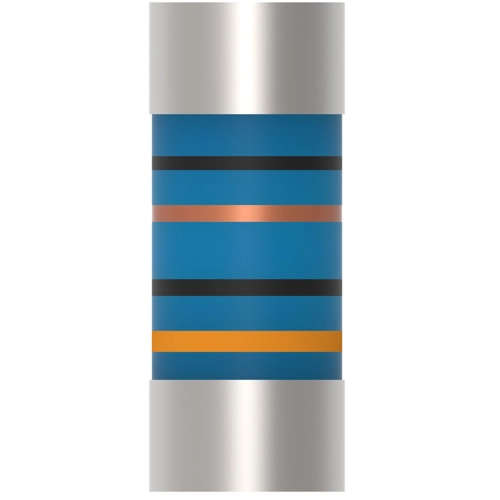

Metal film precision, 9-2176315-3, TE Connectivity
The 9-2176315-3 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR. This product comes in three sizes and six power rating ,and is also lead free and RoHS compliant.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Measurement/Testing equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Technology | thin film | |
| min. operating temperature | -55 °C | |
| Power | 0.4 W | |
| max. operating temperature | 155 °C | |
| diameter | 1.4 mm | |
| ohmic resistance | 390 kΩ | |
| Design | SMD 0204 | |
| Length | 3.5 mm | |
| Enclosure | mini MELF | |
| Tolerance | ±1 % | |
| Temperature coefficient | ±50 ppm/°K |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
