9-2176314-0 | TE Connectivity

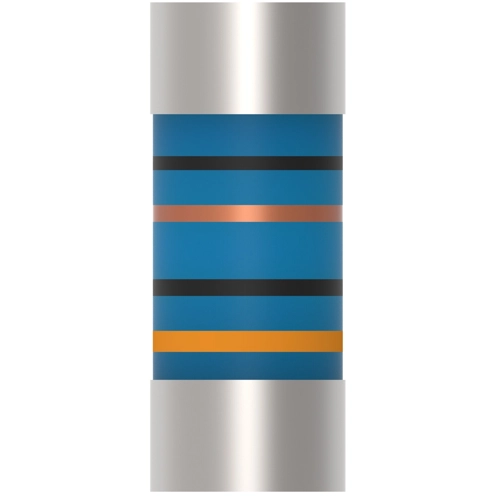

Resistor, thin film, SMD 0102, Micro-MELF, 390 kΩ, 0.3 W, ±1 %, 9-2176314-0
Unit Price (€ / pc.)
0.1071 € *
Available: 0 pcs.
Available in 5 Days: 4,905 pcs.
Leadtime: 1 Week **
Metal film precision, 9-2176314-0, TE Connectivity
The 9-2176314-0 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR. This product comes in three sizes and six power rating ,and is also lead free and RoHS compliant.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Measurement/Testing equipment
Technical specifications
| ohmic resistance | 390 kΩ | |
| Design | SMD 0102 | |
| diameter | 1.1 mm | |
| Enclosure | Micro-MELF | |
| Length | 2.2 mm | |
| Power | 0.3 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thin film | |
| Temperature coefficient | ±50 ppm/°K |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
