6-2176329-0 | TE Connectivity
Resistor, thick film, SMD 3225, 820 kΩ, 0.75 W, ±1 %, 6-2176329-0
Unit Price (€ / pc.)
0.0595 € *
Available: 0 pcs.
Available in 5 Days: 40,000 pcs.
Leadtime: 1 Week **
Total Price:
0.06 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0595 €
10000 pcs.
0.0571 €
*incl. VAT plus shipping costs
**Subject to prior sale

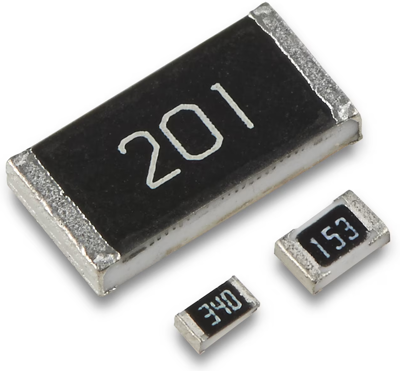

Chip resistor, 6-2176329-0, TE Connectivity
The 6-2176329-0 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.
Features
- Small size and light weight
- Pulse Rated
- Terminal finish matte Sn over Ni
Technical specifications
| ohmic resistance | 820 kΩ | |
| Design | SMD 3225 | |
| Height | 0.55 mm | |
| Length | 3.1 mm | |
| Power | 0.75 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/°K |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
