5-2176238-1 | TE Connectivity
Resistor, thin film, SMD 2012, 15 kΩ, 0.1 W, ±0.1 %, 5-2176238-1
Unit Price (€ / pc.)
0.1083 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 1 Week **

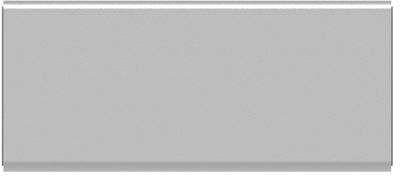

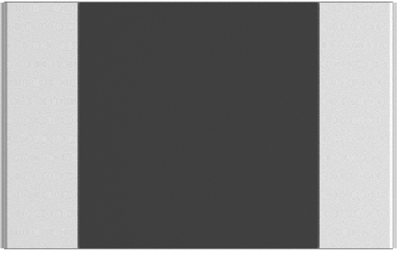

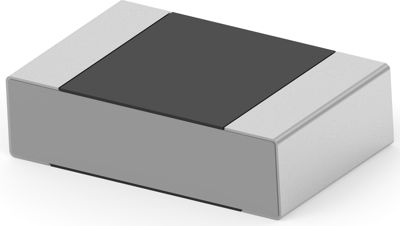

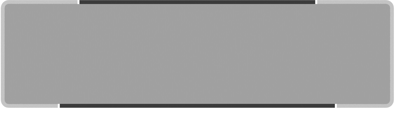

Chip resistor, 5-2176238-1, TE Connectivity
The 5-2176238-1 is a thin film chip resistor with test proven immunity to humidity, moisture, and sulfur. This product has special materials, design, and processing high sulfur applications.
Features
- Advanced thin film technology
- RoHS complian
Applications
- Automotive
- Medical
- Testing / Measurement
- Communication
Technical specifications
| ohmic resistance | 15 kΩ | |
| Design | SMD 2012 | |
| Height | 0.55 mm | |
| Length | 2 mm | |
| Power | 0.1 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±0.1 % | |
| Technology | thin film | |
| Temperature coefficient | ±25 ppm/°K |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
