4-1676480-9 | TE Connectivity
Resistor, thick film, SMD 0402 (1005), 330 kΩ, 0.063 W, ±1 %, 4-1676480-9
Unit Price (€ / pc.)
0.0029 € *
Available: 0 pcs.
Available in 5 Days: 80,000 pcs.
Leadtime: 1 Week **

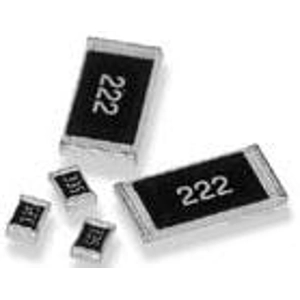

Chip resistor, 4-1676480-9, TE Connectivity
The 4-1676480-9 is a thick film resistor with high power to size ratio, ideally suited to industrial and general purpose use. The resistive element is screen printed and fired, and a passivation layer added.
Features
- Terminal finish matte Sn over Ni
Technical specifications
| ohmic resistance | 330 kΩ | |
| Design | SMD 0402 (1005) | |
| Width | 0.5 mm | |
| Height | 0.35 mm | |
| Length | 1 mm | |
| Power | 0.063 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/°K |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
