3-2176315-9 | TE Connectivity

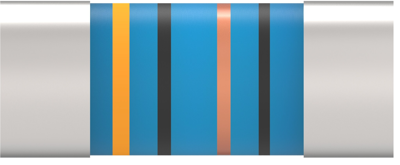

Resistor, thin film, SMD 0204, mini MELF, 120 Ω, 0.4 W, ±1 %, 3-2176315-9
Unit Price (€ / pc.)
0.0274 € *
Available in 5 Days: 33,000 pcs. - if ordered today
Metal film precision, 3-2176315-9, TE Connectivity
The 3-2176315-9 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR. This product comes in three sizes and six power rating ,and is also lead free and RoHS compliant.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Measurement/Testing equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 120 Ω | |
| max. operating temperature | 155 °C | |
| Tolerance | ±1 % | |
| min. operating temperature | -55 °C | |
| Design | SMD 0204 | |
| Technology | thin film | |
| Length | 3.5 mm | |
| Power | 0.4 W | |
| Temperature coefficient | ±50 ppm/°K | |
| Enclosure | mini MELF | |
| diameter | 1.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
