2-2176314-7 | TE Connectivity
Resistor, thin film, SMD 0102, MicroMELF, 15 kΩ, 0.3 W, ±0.1 %, 2-2176314-7
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 19 Weeks **

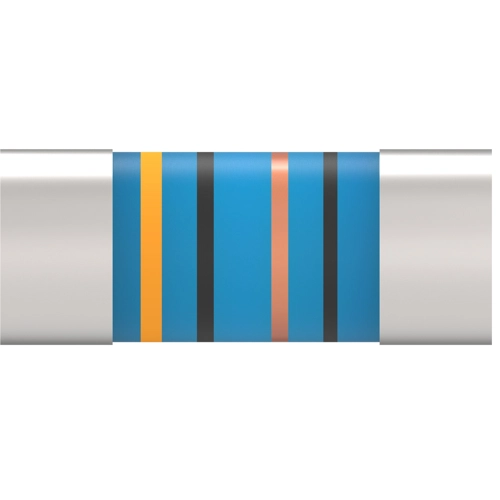

Metal film precision, 2-2176314-7, TE Connectivity
The 2-2176314-7 is a metal film precision MELF resistor with an SMD enabled structure tight tolerance and low TCR. This product comes in three sizes and six power rating ,and is also lead free and RoHS compliant.
Features
- Thin film technology
- Excellent overall stability
- Sn termination on Ni barrier layer
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Measurement/Testing equipment
Technical specifications
| max. operating temperature | 155 °C | |
| Enclosure | MicroMELF | |
| Design | SMD 0102 | |
| Power | 0.3 W | |
| diameter | 1.1 mm | |
| Length | 2.2 mm | |
| Temperature coefficient | ±15 ppm/°K | |
| min. operating temperature | -55 °C | |
| Technology | thin film | |
| Tolerance | ±0.1 % | |
| ohmic resistance | 15 kΩ |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
