1-2176324-7 | TE Connectivity

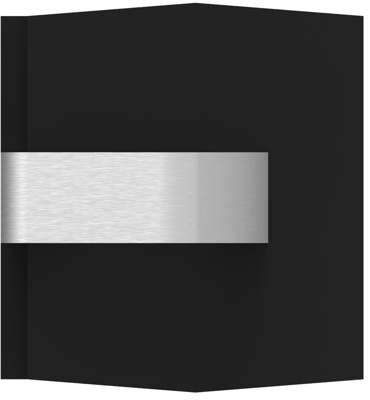

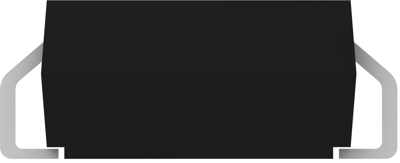

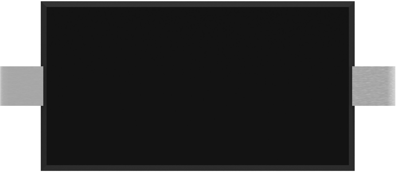

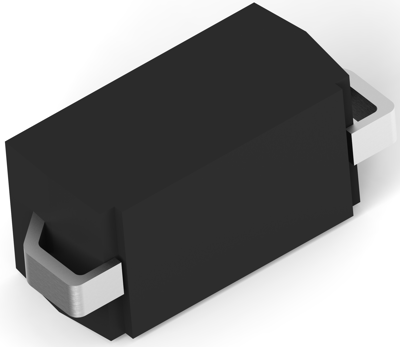

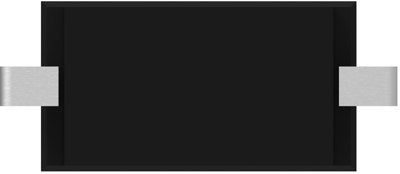

Resistor, metal film, SMD, 2.2 MΩ, 3 W, ±5 %, 1-2176324-7
Unit Price (€ / pc.)
0.6545 € *
Available in 5 Days: 8,699 pcs. - if ordered today
Power resistor, 1-2176324-7, TE Connectivity
The 1-2176322-0 is a metal glaze high voltage power resistor that provides high stable performance against environmental conditions and overload. This product is resistance to sulfur along with high surge and pulse withstand capabilities.
Features
- High surge withstanding and pulse withstanding performance
- Excellent mechanical strength and electrical stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 6.8 mm | |
| Temperature coefficient | ±200 ppm/°K | |
| min. operating temperature | -65 °C | |
| Length | 13.5 mm | |
| max. operating temperature | 200 °C | |
| Tolerance | ±5 % | |
| ohmic resistance | 2.2 MΩ | |
| Power | 3 W | |
| Technology | metal film | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
