1-2176324-1 | TE Connectivity

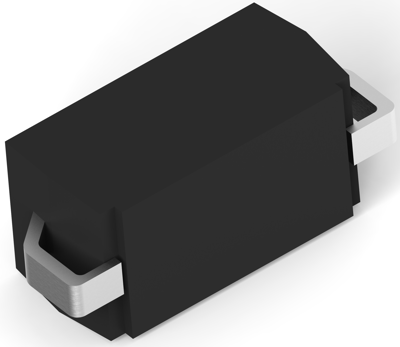

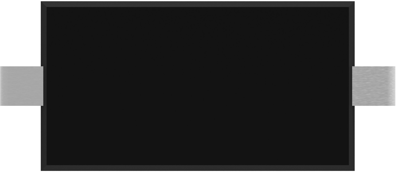

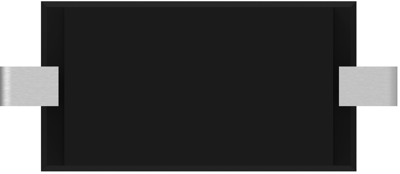

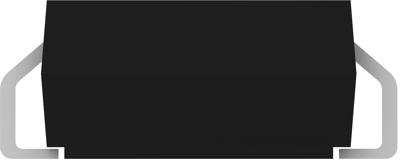

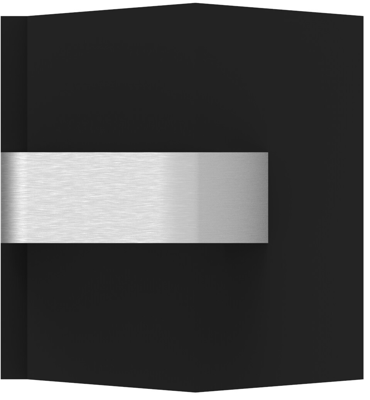

Resistor, metal film, SMD, 680 kΩ, 3 W, ±5 %, 1-2176324-1
Unit Price (€ / pc.)
0.8092 € *
Available in 5 Days: 10,799 pcs. - if ordered today
Total Price:
404.60 € *
Price list
Quantity
Price per unit*
500 pcs.
0.8092 €
1000 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
Power resistor, 1-2176324-1, TE Connectivity
The 1-2176322-0 is a metal glaze high voltage power resistor that provides high stable performance against environmental conditions and overload. This product is resistance to sulfur along with high surge and pulse withstand capabilities.
Features
- High surge withstanding and pulse withstanding performance
- Excellent mechanical strength and electrical stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 680 kΩ | |
| Temperature coefficient | ±200 ppm/°K | |
| max. operating temperature | 200 °C | |
| Technology | metal film | |
| Length | 13.5 mm | |
| Design | SMD | |
| Power | 3 W | |
| min. operating temperature | -65 °C | |
| Tolerance | ±5 % | |
| Height | 6.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
