1SNA115118R1100 | TE Connectivity

Screw terminal block, screw connection, 6.0 mm², 2 pole, 41 A, 8 kV, gray, 1SNA115118R1100

Order No.: 71P4130
EAN: 4099891648886
MPN:
1SNA115118R1100
Series: SNA

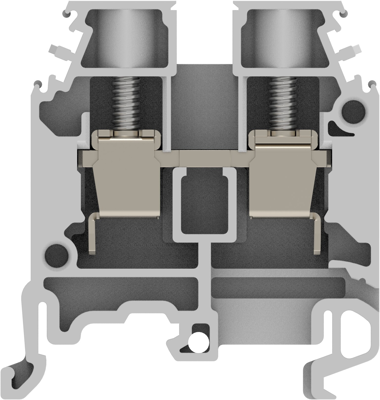

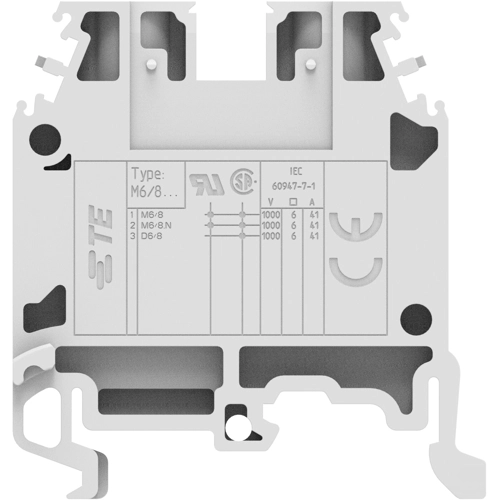

1SNA115118R1100 TE Connectivity Series Terminals Image 1

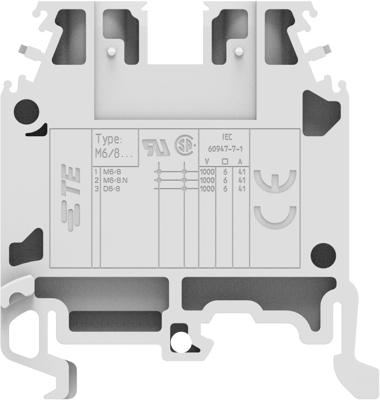

1SNA115118R1100 TE Connectivity Series Terminals Image 2

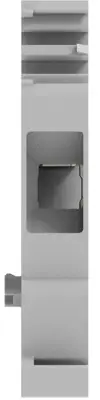

1SNA115118R1100 TE Connectivity Series Terminals Image 3

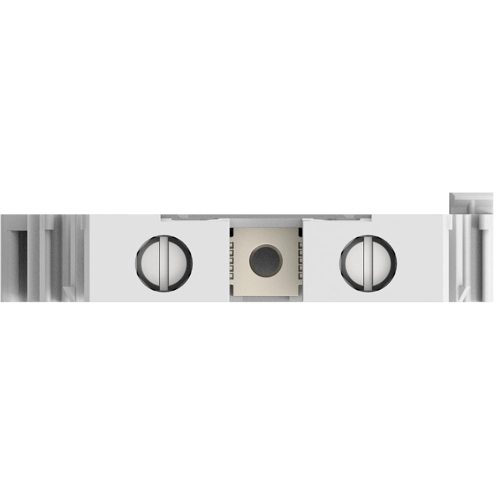

1SNA115118R1100 TE Connectivity Series Terminals Image 4

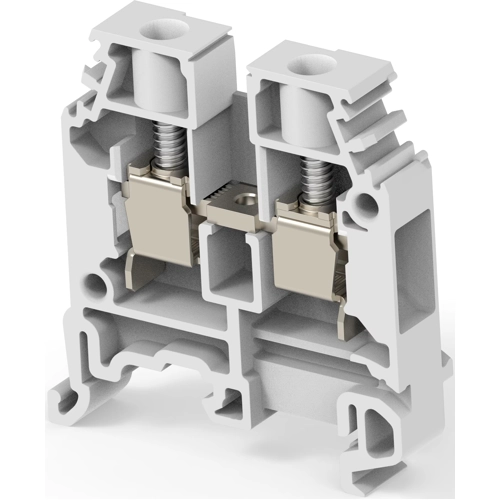

1SNA115118R1100 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
4.4149 € *
Available: 0 pcs.
Available in 5 Days: 730 pcs.
Leadtime: 28 Weeks **
Total Price:
4.41 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4149 €
10 pcs.
4.0579 €
50 pcs.
3.6533 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 1SNA115118R1100, TE Connectivity

Modular terminal block, Feed-Through, Screw clamp terminal block, Gray, Product spacing 8 mm, 2 Position, Screw terminal.

Features

  • Snap onto symmetrical and asymmetrical rails
Technical specifications
Colour gray
AWG cross-section AWG 8
Rated current 41 A
Width 8 mm
Height 44.5 mm
Length 40.5 mm
Cable cross-section 6.0 mm²
Pin number 2 pole
Version screw terminal block
Connection screw connection
Degree of soiling 3
Rated Voltage 1000 V
Rated surge voltage 8 kV
Logistics
Country of origin FR
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
