T4151420005-003 | TE Connectivity

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 1.5 m, PUR, black, 4 A, T4151420005-003

Order No.: 38P9360
MPN:
T4151420005-003

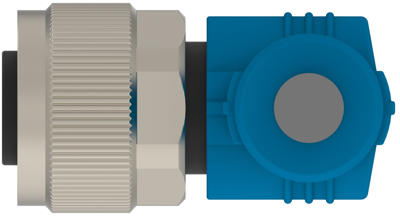

T4151420005-003 TE Connectivity Sensor-Actuator Cables Image 1

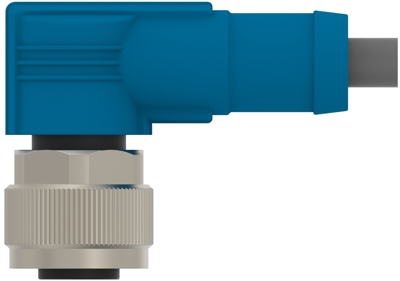

T4151420005-003 TE Connectivity Sensor-Actuator Cables Image 2

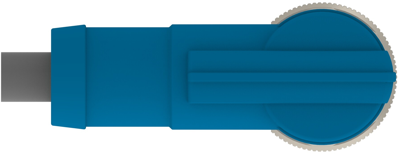

T4151420005-003 TE Connectivity Sensor-Actuator Cables Image 3

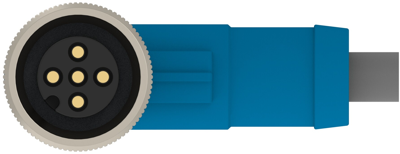

T4151420005-003 TE Connectivity Sensor-Actuator Cables Image 4

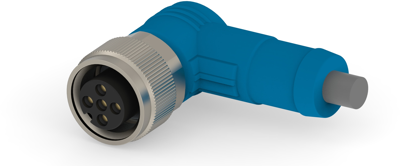

T4151420005-003 TE Connectivity Sensor-Actuator Cables Image 5
Image may differ
Unit Price (€ / pc.)
11.7691 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
11.77 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7691 €
5 pcs.
11.1622 €
10 pcs.
10.4363 €
25 pcs.
9.5200 €
*incl. VAT plus shipping costs
Subject to prior sale

M12 sensor actuator cable, T4151420005-003, TE Connectivity

M12 Pigtail Cable Assembly, 5 Position, Cable Assembly Length 1.5 m, Sensor/Actuator, A Code, M12 Socket End A, Single Ended, Nylon GF.

Technical specifications
Filter Property Value
Connection (1) M12-cable socket, angled
Connection (2) open end
Pin number 5 pole
Cable length 1.5 m
Colour black
Material PUR
Degree of protection (IP) IP67
LED display No
max. Voltage 60 V
Rated current 4 A
Logistics
Property Value
Country of origin CN
Customs tariff number 85444290
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
