T4151399L25-020 | TE Connectivity
Sensor actuator cable, M12-cable socket, straight to open end, 5 pole, 2 m, PVC, gray, 16 A, T4151399L25-020
Order No.: 38P9322
MPN:
T4151399L25-020
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
59.8451 € *
Available in 5 Days: 16 pcs. - if ordered today
Total Price:
59.85 € *
Price list
Quantity
Price per unit*
1 pcs.
59.8451 €
2 pcs.
55.9895 €
5 pcs.
52.5980 €
10 pcs.
48.8852 €
*incl. VAT plus shipping costs
Subject to prior sale

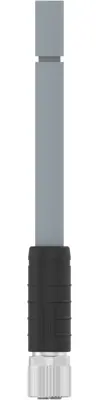

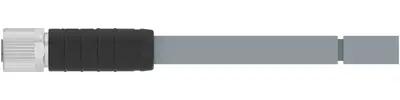

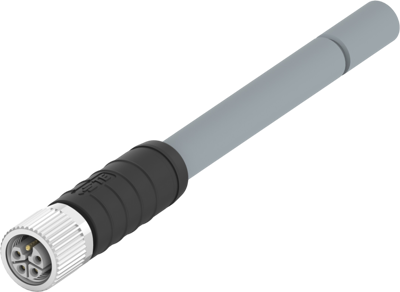

M12 sensor actuator cable, T4151399L25-020, TE Connectivity
M12 Pigtail Cable Assembly, 5 Position, Cable Assembly Length 2 m, Power, PROFINET, L Code, M12 Socket End A, Single Ended, Nylon.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 2 m | |
| Colour | gray | |
| Material | PVC | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 63 V | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
