284506-8 | TE Connectivity

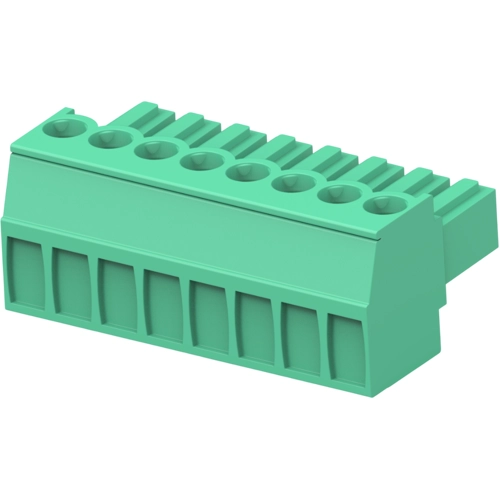

Socket header, 8 pole, pitch 3.5 mm, angled, green, 284506-8
Order No.: 59F911
MPN:
284506-8
Unit Price (€ / pc.)
10.9361 € *
Available in 5 Days: 511 pcs. - if ordered today
Total Price:
10.94 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9361 €
10 pcs.
10.1626 €
25 pcs.
9.4843 €
50 pcs.
8.6156 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal block, 284506-8, TE Connectivity
8 Position PCB Terminal Block, Plug, Wire-to-Board, 3.5 mm Centerline, 1 Row, 180° Wire Entry Angle, 30 - 14 AWG, 0.05 - 2 mm² Wire, 300 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Connection | screw connection | |
| Number of rows | 1 | |
| Contact type | pin | |
| Rated voltage | 300 V | |
| contact surface | tin-plated | |
| Pin number | 8 pole | |
| Grid | 3.5 mm | |
| Colour | green | |
| Rated current | 11 A | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
