284391-4 | TE Connectivity

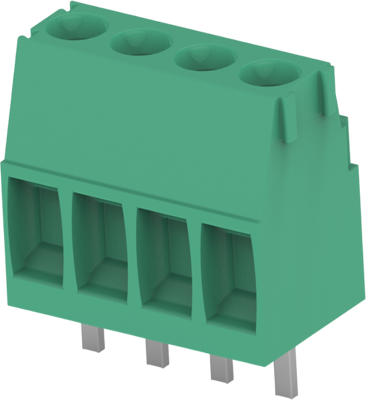

Pin header, 4 pole, pitch 3.5 mm, straight, green, 284391-4
Order No.: 59F907
MPN:
284391-4
Unit Price (€ / pc.)
2.3800 € *
Available in 5 Days: 365 pcs. - if ordered today
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.2134 €
50 pcs.
2.0349 €
100 pcs.
1.8564 €
*incl. VAT plus shipping costs
Subject to prior sale

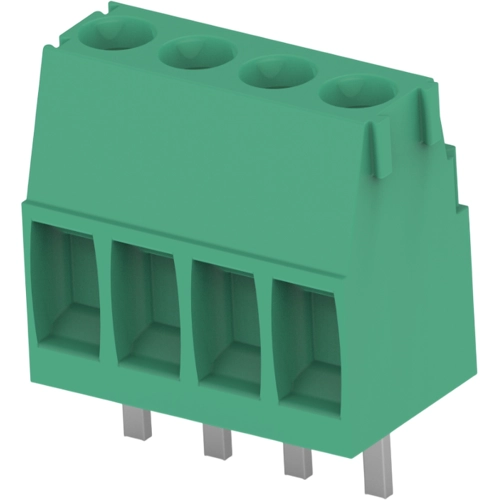

PCB terminal block, 284391-4, TE Connectivity
4 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 - 14 AWG, 0.05 - 2 mm² Wire, 300 VAC.
Technical specifications
| Number of rows | 1 | |
| Rated voltage | 300 V | |
| Contact type | pin | |
| Connection | solder connection | |
| contact surface | tin-plated | |
| Pin number | 4 pole | |
| Grid | 3.5 mm | |
| Orientation | straight | |
| Colour | green | |
| Version | pin header | |
| Rated current | 12 A |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
