282844-2 | TE Connectivity

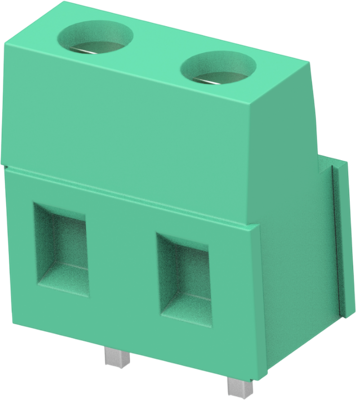

Pin header, 2 pole, pitch 7.5 mm, straight, green, 282844-2
Order No.: 59F899
MPN:
282844-2
Unit Price (€ / pc.)
1.4280 € *
Available in 5 Days: 1,140 pcs. - if ordered today
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4280 €
10 pcs.
1.3209 €
25 pcs.
1.2257 €
50 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal block, 282844-2, TE Connectivity
2 Position PCB Terminal Block, Header, Wire-to-Board, 7.5 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 - 12 AWG, 0.05 - 2 mm² Wire, 300 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 17.5 A | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Colour | green | |
| Pin number | 2 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
