282811-2 | TE Connectivity

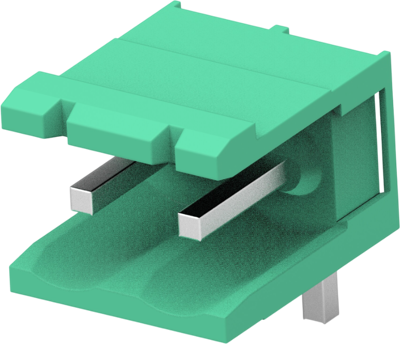

Pin header, 2 pole, pitch 5 mm, angled, green, 282811-2
Order No.: 59F889
MPN:
282811-2
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 2,650 pcs. - if ordered today
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7616 €
10 pcs.
0.7021 €
25 pcs.
0.6545 €
50 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal block, 282811-2, TE Connectivity
2 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm Centerline, 1 Row, 30 - 12 AWG, 0.05 - 3 mm² Wire, 300 VAC, Printed Circuit Board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Contact type | pin | |
| Rated voltage | 300 V | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Colour | green | |
| Rated current | 15 A | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
