2-2299683-5 | TE Connectivity

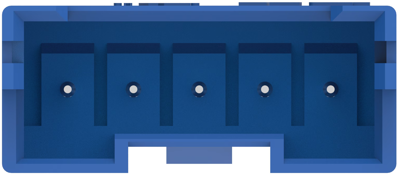

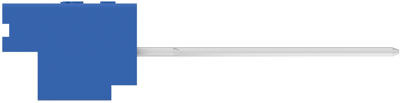

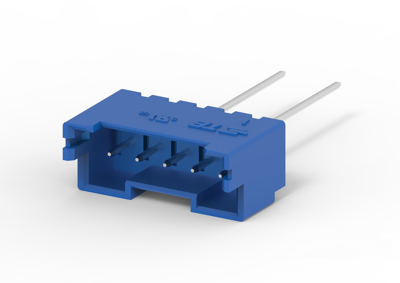

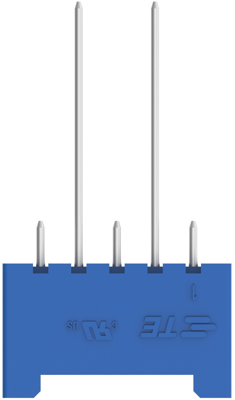

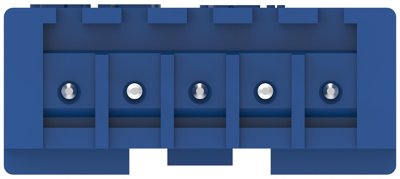

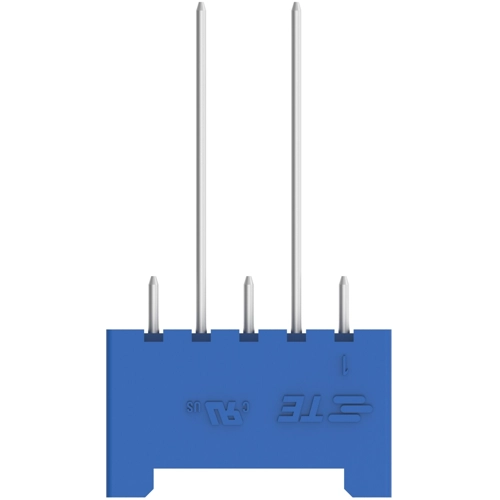

Pin header, 5 pole, pitch 2.5 mm, straight, blue, 2-2299683-5
Order No.: 59F385
MPN:
2-2299683-5
Unit Price (€ / pc.)
0.2820 € *
Available in 5 Days: 24,300 pcs. - if ordered today
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2820 €
10 pcs.
0.2618 €
25 pcs.
0.2440 €
50 pcs.
0.2213 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 2-2299683-5, TE Connectivity
PCB mount header, vertical, Wire-to-Board, 5 Positions, 2.5 mm centerline, Fully Shrouded, Tin (Sn), Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 5 pole | |
| Colour | blue | |
| Version | pin header | |
| Rated current | 4.2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
