T4112002041-000 | TE Connectivity

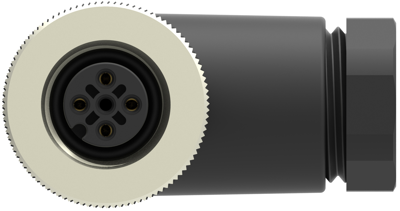

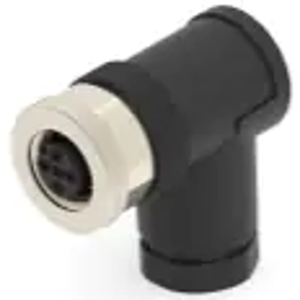

Jack, 4 pole, screw connection, screw locking, angled, T4112002041-000
Order No.: 38P6628
EAN: 4099889721225
MPN:
T4112002041-000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.2229 € *
Available in 12 Days: 615 pcs. - if ordered today
Total Price:
8.22 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2229 €
5 pcs.
7.7945 €
10 pcs.
7.2947 €
25 pcs.
6.6521 €
*incl. VAT plus shipping costs
Subject to prior sale
Other Circular Connector, T4112002041-000, TE Connectivity
Receptacle, 4-pole, Wire-to-Wire, Polyamide 66 GF25, -40 – 85 °C [ -40 – 185 °F ], IP67
Technical Data
- Design: Socket
- Operating Voltage (VAC): 250
- Number of Positions: 4
- Keying: A
- Environmental Protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| Cable cross-section | 0.2-0.82 mm² | |
| Pin number | 4 pole | |
| Orientation | angled | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
