1053354-1 | TE Connectivity

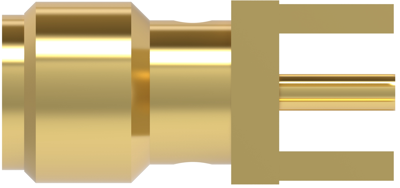

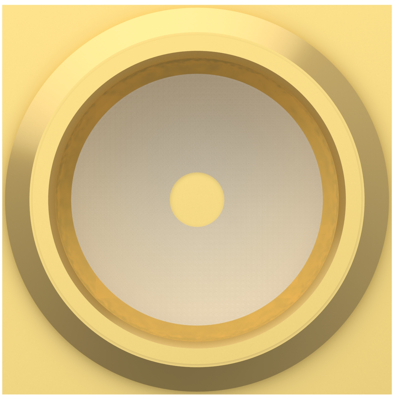

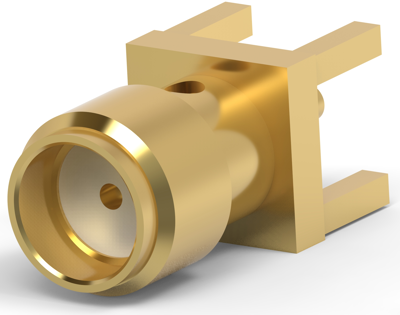

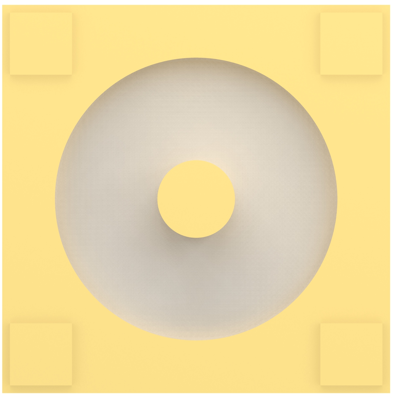

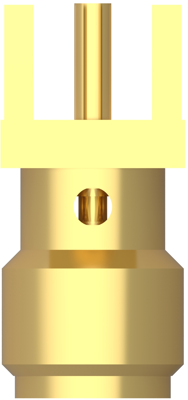

SMA panel socket 50 Ω, solder connection, straight, 1053354-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
23.0027 € *
Available in 12 Days: 298 pcs. - if ordered today
Total Price:
23.00 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0027 €
10 pcs.
21.5747 €
25 pcs.
20.3014 €
50 pcs.
19.1709 €
*incl. VAT plus shipping costs
Subject to prior sale
RF Coaxial connector, 1053354-1, TE Connectivity
The 1053354-1 is a field replaceable hermetic launcher. This product offers stainless steel bodies, as well as nonferrous metals.
Features
- Performance to 12.4 GHz and beyond
- Uses industry standard crimp tools and processes
- Corrosion resistant
- Non-magnetic white bronze plating
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Impedance | 50 Ω | |
| Connector | SMA | |
| Design | straight | |
| Contact material | beryllium copper | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
