9-1768016-7 | TE Connectivity
PE cable maker, inscribable, (W x H) 33.3 x 140 mm, max. bundle Ø 36.5 mm, 9-1768016-7
Unit Price (€ / pck.)
29.2145 € *
Standard delivery time from the manufacturer is: 8 Weeks
Cable tag for laser printer, type TE Connectivity/Idento CSL to PW.
For printing on standard laser printers. The tag is made of high-quality, transparent polyester film which has a white opaque marking field; Characteristics: does not get dirty, stack processing, symmetrical layout, easily removed. Operating temperatures: –30 to +120 °C. Foil thickness: 0.025 mm, package quantity: by sheet.

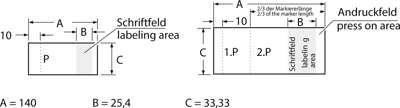

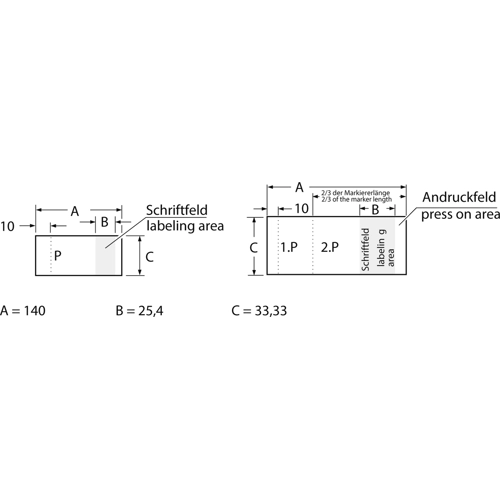

Technical attributes (type, dimensions, cable outer diameter, number of tags per sheet (MB)/in number of rows (R), perforation (P)): 14033 PW, A 140, B 25.4, C 33.33 mm, D 34, MB 12/R 6, 2 P
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Bundle diameter | 36.5 mm | |
| Version | cable maker | |
| Height | 140 mm | |
| Material | PE | |
| Markable | Yes | |
| Width | 33.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Sheet with 12 pieces |
| Country of origin | DE |
| Customs tariff number | 39199080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
