8-1768016-5 | TE Connectivity
Polyester cable maker, inscribable, (W x H) 18.2 x 33.9 mm, max. bundle Ø 8.1 mm, white, 8-1768016-5
Active
Product by TE Connectivity at Bürklin Elektronik
Cable tag for laser printer, type TE Connectivity/Idento CSL to PW.
For printing on standard laser printers. The tag is made of high-quality, transparent polyester film which has a white opaque marking field; Characteristics: does not get dirty, stack processing, symmetrical layout, easily removed. Operating temperatures: –30 to +120 °C. Foil thickness: 0.025 mm, package quantity: by sheet.

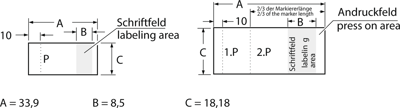

Technical attributes (type, dimensions, cable outer diameter, number of tags per sheet (MB)/in number of rows (R), perforation (P)): 3418 PW, A 33.9, B 8.5, C 18.18 mm, D 5.0, MB 88/R 11, 0 P
| Version | cable maker | |
| Width | 18.2 mm | |
| Colour | white | |
| Height | 33.9 mm | |
| Material | Polyester | |
| max. Bundle diameter | 8.1 mm | |
| Markable | Yes |
| Country of origin | DE |
| Customs tariff number | 39199080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
