8-1768016-3 | TE Connectivity
Polyester cable maker, inscribable, (W x H) 12.5 x 26.7 mm, max. bundle Ø 6.6 mm, white, 8-1768016-3
Unit Price (€ / pck.)
24.9424 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
24.94 € *
Price list
Quantity
Price per unit*
1 pck.
24.9424 €
10 pck.
23.0384 €
25 pck.
21.5152 €
50 pck.
19.4208 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable tag for laser printer, type TE Connectivity/Idento CSL to PW.
For printing on standard laser printers. The tag is made of high-quality, transparent polyester film which has a white opaque marking field; Characteristics: does not get dirty, stack processing, symmetrical layout, easily removed. Operating temperatures: –30 to +120 °C. Foil thickness: 0.025 mm, package quantity: by sheet.

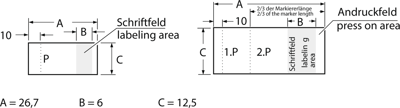

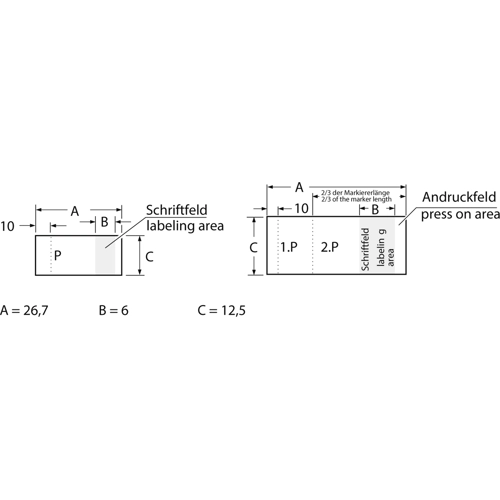

Technical attributes (type, dimensions, cable outer diameter, number of tags per sheet (MB)/in number of rows (R), perforation (P)): 2713 PW, A 26.7, B 6.0, C 12.50 mm, D 3.0, MB 160/R 16, 0 P
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Width | 12.5 mm | |
| max. Bundle diameter | 6.6 mm | |
| Material | polyester | |
| Markable | Yes | |
| Version | cable maker | |
| Height | 26.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Sheet with 160 pieces |
| Country of origin | DE |
| Customs tariff number | 39199080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
