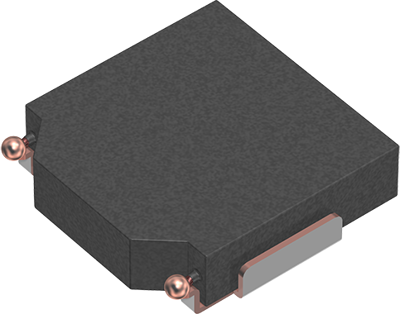

Choke, SMD 4012, 1.5 µH, 3.5 A, SPM4012T-1R5M-LR

default S
front S
side S
default L
front L
side L
Total price
(0.55 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1000 pcs.
0.55 €
*incl. VAT plus shipping costs
Description

Product by TDK at Bürklin Elektronik

SMD choke, SPM4012T-1R5M-LR, TDK

Features

  • Magnetic shield type wound inductor for power circuits using a metallic magnetic material
  • Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness
  • Low inductance variance in high-temperature environments with good DC superimposition characteristics
  • Operating temperature range: -40 to +125°C

Applications

  • Note PCs
  • HDDs
  • VRMs
  • Compact power supply modules

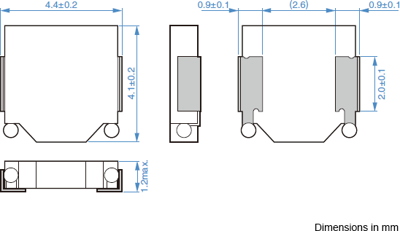

Technical specifications
Version SMD choke
Design SMD 4012
Width 4.1 mm
DC current 3.5 A
DC resistance 0.0657 Ω
Height 1.2 mm
Inductance 0.0015 mH
Length 4.4 mm
Measuring frequency 0.1 MHz
Saturation current 5.8 A
Tolerance ±20 %
Show similar products (0)
Logistics
Customs tariff number 85045000
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Choke, SMD 4012, 3.3 µH, 2.6 A, SPM4012T-3R3M-LR
Order No.:
 75D1749
Manufacturer:
 TDK
Manufacturer SKU
 SPM4012T-3R3M-LR
1000 pcs.
0.55 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4.1 mm
4.4 mm
±20 %
1.2 mm
0.0033 mH
2.6 A
0.1265 Ω
Choke, SMD 4012, 1.5 µH, 3.5 A, SPM4012T-1R5M-LR
Order No.:
 75D1745
Manufacturer:
 TDK
Manufacturer SKU
 SPM4012T-1R5M-LR
1000 pcs.
0.55 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4.1 mm
4.4 mm
±20 %
1.2 mm
0.0015 mH
3.5 A
0.0657 Ω
Choke, SMD 4012, 470 nH, 6.7 A, SPM4012T-R47M-LR
Order No.:
 75D1753
Manufacturer:
 TDK
Manufacturer SKU
 SPM4012T-R47M-LR
1000 pcs.
0.55 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4.1 mm
4.4 mm
±20 %
1.2 mm
0.00047 mH
6.7 A
0.0176 Ω
Choke, SMD 4012, 2.2 µH, 3.1 A, SPM4012T-2R2M-LR
Order No.:
 75D1747
Manufacturer:
 TDK
Manufacturer SKU
 SPM4012T-2R2M-LR
1000 pcs.
0.55 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4.1 mm
4.4 mm
±20 %
1.2 mm
0.0022 mH
3.1 A
0.0854 Ω
Choke, SMD 4012, 1 µH, 4.7 A, SPM4012T-1R0M-LR
Order No.:
 75D1743
Manufacturer:
 TDK
Manufacturer SKU
 SPM4012T-1R0M-LR
1000 pcs.
0.55 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4.1 mm
4.4 mm
±20 %
1.2 mm
0.001 mH
4.7 A
0.0363 Ω
Choke, SMD 4012, 4.7 µH, 1.7 A, SPM4012T-4R7M-LR
Order No.:
 75D1751
Manufacturer:
 TDK
Manufacturer SKU
 SPM4012T-4R7M-LR
1000 pcs.
0.55 €
0.00 € *
Currently not in stock, we will order for you
SMD 4012
SMD choke
4.1 mm
4.4 mm
±20 %
1.2 mm
0.0047 mH
1.7 A
0.1967 Ω
