ZCAT1730-0730A-BK | TDK
Folding ferrite, cable Ø 3-5 mm, (L x W x H) 30 x 11.2 x 16.5 mm, ZCAT1730-0730A-BK
Not suitable for new designs
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 32 Weeks

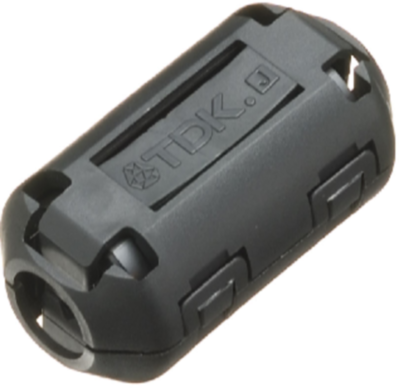

Clamp filter, ZCAT1730-0730A-BK, TDK
Clamp filter for cable.
Features
- Have excellent absorption of high-frequency noise using the high-frequency absorption characteristics of the ferrite core
- Effective for common mode noise, so can be implemented as a noise countermeasure without influencing signal quality
Applications
- PCs, word processors, monitors, HDDs
- Digital telephones, audio equipment, electronic musical instruments, video games
- Copiers and facsimiles
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 3-5 mm | |
| Width | 11.2 mm | |
| Length | 30 mm | |
| Height | 16.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 840 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
