CKG57NX7T2J105M500JH | TDK

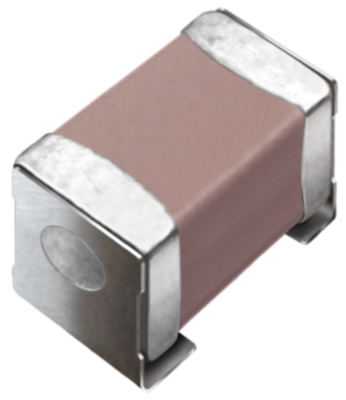

Ceramic capacitor, 1 µF, 630 V (DC), ±20 %, SMD 2220, X7T, CKG57NX7T2J105M500JH
Not suitable for new designs
Unit Price (€ / pc.)
3.9984 € *
Available: 1,000 pcs.
Leadtime: 52 Weeks **
Total Price:
4.00 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9984 €
10 pcs.
3.5224 €
100 pcs.
3.0940 €
250 pcs.
2.9631 €
1000 pcs.
2.7727 €
*incl. VAT plus shipping costs
**Subject to prior sale
Capacitor, CKG57NX7T2J105M500JH, TDK
Features
- Higher mechanical endurance is realized by metal-frame structure
- Twice capacitance is realized by double-stacked structure without changing footprint
- Lower ESR and ESL than Al caps
- C0G temperature characteristic which has excellent stable temperature and DC-bias characteristcs is applicable
- Mounting on Al board is applicable
Technical specifications
| Design | SMD 2220 | |
| Dielectric material | X7T | |
| Capacity | 1 µF | |
| Length | 5.7 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 630 V | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322400 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
