DRL-30-24-1 | TDK-Lambda
Power supply, 24 VDC, 1.25 A, 30 W, DRL-30-24-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
46.8741 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
46.87 € *
Price list
Quantity
Price per unit*
1 pcs.
46.8741 €
4 pcs.
44.5298 €
8 pcs.
42.3045 €
*incl. VAT plus shipping costs
Subject to prior sale

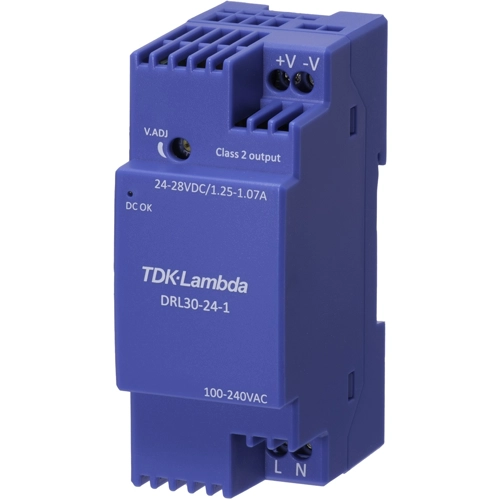

Power supply, DRL-30-24-1, TDK-Lambda

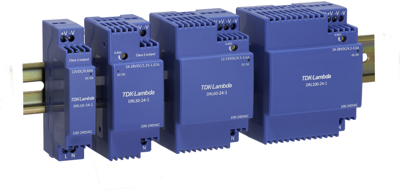

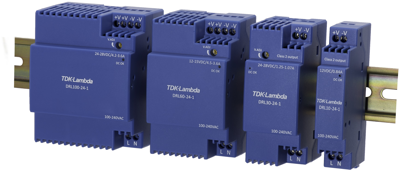

The flat DIN rail power supply DRL offers a reliable solution for many industrial applications and building automation. With double insulation and safety class II input, no connection to ground is required.
Features
- High efficiency, up to 90 % 230 VAC
- Low no-load consumption
- Long e-cap life (>8 years 40 °C, 75 % load, 230 VAC)
- Class II, wide range input (85-264 VAC)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.25 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 85-264 VAC | |
| Power | 30 W | |
| efficiency | 90 % | |
| Width | 55.6 mm | |
| Height | 36 mm | |
| Depth | 91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Electrical equipment take-back |  |
