DRM40B | TDK-Lambda

Redundancy module, for UPS systems, DRM40B

Order No.: 70C1343
EAN: 4099891296230
MPN:
DRM40B
Basis Funktionalität
Series: DRM40
TDK-Lambda

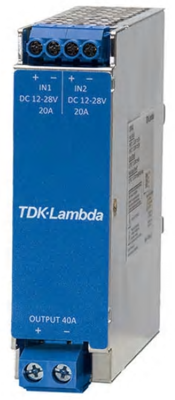

DRM40B TDK-Lambda Accessories for power supplies Image 1

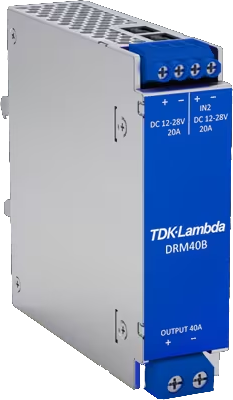

DRM40B TDK-Lambda Accessories for power supplies Image 2

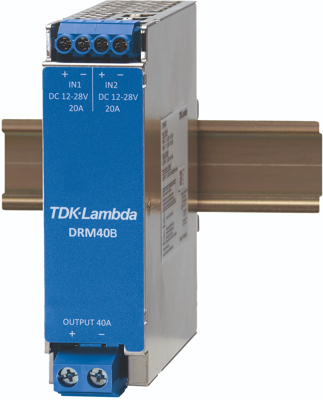

DRM40B TDK-Lambda Accessories for power supplies Image 3
Image may differ
Unit Price (€ / pc.)
58.8931 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
58.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
58.8931 €

DIN Rail redundancy module, DRM40B, TDK-Lambda

DIN Rail redundancy module is ideal for connecting two 20A, 10V to 30Vdc output power supplies to produce a 20A N+1 redundant configuration. Alternatively, using the load balancing option, two 20A supplies can be paralleled to deliver a 40A output. For capacitive and inductive loads, the DRM40 will support an additional 50% peak load for four seconds. The use of low-loss MOSFET reverse current protection devices reduces the internal voltage drop to just 200mV.

Features

  • Compact size
  • Current balance indicator option
  • Isolated alarm signals
  • Occupies less space on the DIN rail
  • Reduced voltage drop and power loss
  • Ensure and monitor power supply load sharing
  • Simplified remote monitoring
Technical specifications
Suitable for UPS systems
Accessory Type redundancy module
Logistics
Country of origin MY
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
