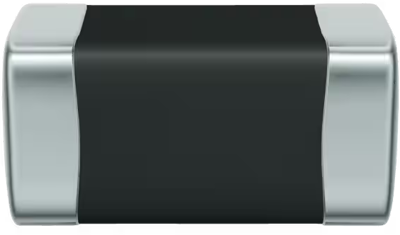

B72530T0140K062 | TDK (EPCOS)
Varistor, SMD 1210, VV 22 V, 400 A, 18 V (DC), 14 V (AC), ±10 %, 0.01 VA (AC), 1.5 J, B72530T0140K062
Unit Price (€ / pc.)
0.5593 € *
Available: 1,090 pcs.
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5593 €
50 pcs.
0.4522 €
250 pcs.
0.3808 €
1000 pcs.
0.3332 €
2500 pcs.
0.2892 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

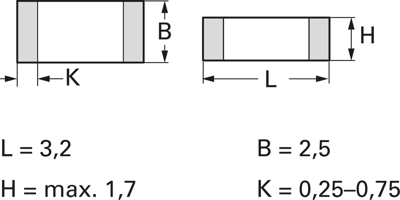

Size 1210, type B72530.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 18 V | |
| Varistor Voltage Type | 22 V | |
| Energy absorption | 1.5 J | |
| Rated voltage (AC) | 14 V | |
| Design | SMD 1210 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 400 A | |
| Standard number | UL, IEC, CECC | |
| Power dissipation | 0.01 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
