B72520T0080L062 | TDK (EPCOS)

Name: Varistor, SMD 1206, VV 15 V, 200 A, 11 V (DC), 8 V (AC), ±15 %, 0.008 VA (AC), 0.5 J, B72520T0080L062
Brand: TDK (EPCOS)
SKU: 82E4826
Availability: InStock

Varistor, SMD 1206, VV 15 V, 200 A, 11 V (DC), 8 V (AC), ±15 %, 0.008 VA (AC), 0.5 J, B72520T0080L062

Order No.: 82E4826

EAN: 4099879990020

MPN:

B72520T0080L062

B72520T80L062

Series: B72520

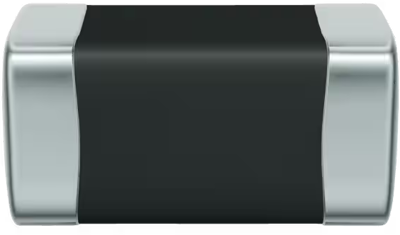

B72520T0080L062 TDK (EPCOS) Varistors Image 1

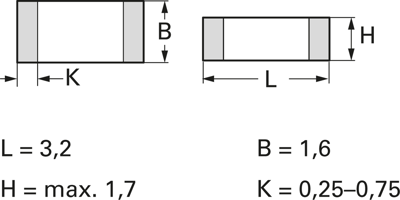

B72520T0080L062 TDK (EPCOS) Varistors Image 2

Image may differ

Key Specification:

Design SMD 1206

Varistor Voltage Type 15 V

max. Surge current, transient (8/20 Âµs) 200 A

Rated voltage (DC) 11 V

Rated voltage (AC) 8 V

Show variants: 12

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2142 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,285.20 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.

Chip package, molded, good soldering properties, low-inductance

Size 1206, type B72520.

Technical specifications

Filter	Property	Value
	Rated voltage (AC)	8 V
	max. operating temperature	125 °C
	min. operating temperature	-55 °C
	max. Surge current, transient (8/20 Âµs)	200 A
	Design	SMD 1206
	Standard number	UL, IEC, CECC
	Varistor Voltage Type	15 V
	Energy absorption	0.5 J
	Power dissipation	0.008 W
	Rated voltage (DC)	11 V
	Tolerance	±15 %
