B72225S4511K101 | TDK (EPCOS)
Varistor, radial, VV 820 V, 20000 A, 670 V (DC), 510 V (AC), ±10 %, 1 VA (AC), 750 J, B72225S4511K101
Unit Price (€ / pc.)
4.6172 € *
Available: 464 pcs.
Leadtime: On Request **
Total Price:
4.62 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6172 €
10 pcs.
4.0579 €
150 pcs.
3.5581 €
300 pcs.
3.4272 €
1200 pcs.
3.2011 €
*incl. VAT plus shipping costs
**Subject to prior sale

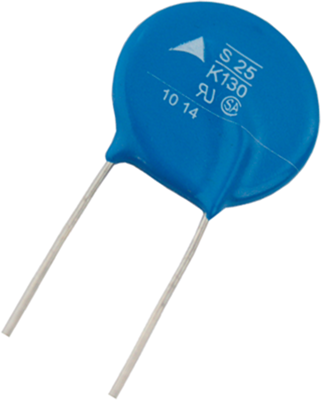

Metal oxide varistors, type TDK/Epcos S25 B72225S.
Disk version
Technical specifications
| Design | radial | |
| Varistor Voltage Type | 820 V | |
| max. Surge current, transient (8/20 µs) | 20000 A | |
| Rated voltage (DC) | 670 V | |
| Rated voltage (AC) | 510 V | |
| Tolerance | ±10 % | |
| Power dissipation | 1 W | |
| Energy absorption | 750 J | |
| Grid | 12 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, VDE, IEC, IEC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 150 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
