B57321V2103J060 | TDK (EPCOS)
NTC, 10 kΩ, ±5 %, 0.18 W, 4000 K, 0.003 W/K, 4 s, SMD 0603, B57321V2103J060
Unit Price (€ / pc.)
0.3213 € *
Available: 558 pcs.
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3213 €
50 pcs.
0.2261 €
250 pcs.
0.1892 €
1000 pcs.
0.1618 €
2500 pcs.
0.1404 €
*incl. VAT plus shipping costs
Subject to prior sale

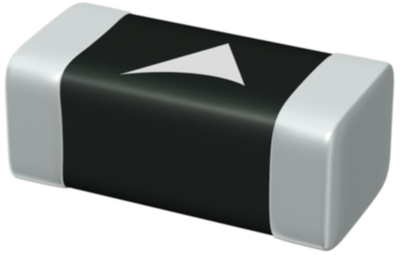

SMD NTC thermistors, type TDK/Epcos B57321V../B57371V.

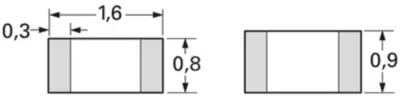

Size 0603, with metalized nickel barrier junction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 kΩ | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| B-value at 25/100 °C | 4000 K | |
| Thermal conductivity (Air) | 0.003 W/K | |
| Cooling time constant (air) | 4 s | |
| Assembly | SMD 0603 | |
| Power | 0.18 W | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | HR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
