B84143A0008R105 | TDK (EPCOS)

EMC filter, 50 to 60 Hz, 8 A, 300/520 VAC, terminal block, B84143A0008R105

Order No.: 75D2834
EAN: 4099889080407
MPN:
B84143A0008R105
B84143A8R105
Series: B84143A.R105

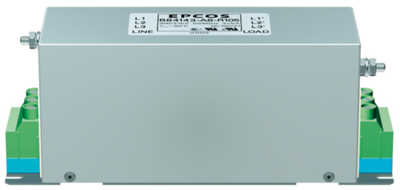

B84143A0008R105 TDK (EPCOS) Interference suppression filter Image 1

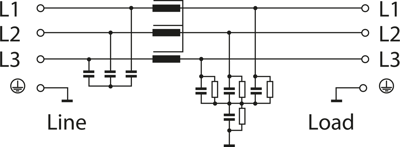

B84143A0008R105 TDK (EPCOS) Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
132.2566 € *
Available: 16 pcs.
Total Price:
132.26 € *
Price list
Quantity
Price per unit*
1 pcs.
132.2566 €
3 pcs.
128.2939 €
10 pcs.
123.8909 €
20 pcs.
121.2491 €
80 pcs.
115.9536 €
*incl. VAT plus shipping costs
Subject to prior sale

EMC filter, B84143A0008R105, EPCOS

3-line filter for converters and power electronics

Features

  • Very good price/performance ratio
  • Ultra-compact design
  • Low weight
  • Easy to install
  • Optimized for long motor cables

Applications

  • Frequency converters for motor drives
  • Elevators
  • Traction system
  • HVAC system (heating, ventilation and air conditioning)
  • Power supplies
Technical specifications
Filter Property Value
Number of phases 3
Rated Voltage 300/520 VAC
min. frequency 50 Hz
min. operating temperature -25 °C
Rated current 8 A
max. operating temperature 100 °C
Version EMC filter
Connection terminal block
max. frequency 60 Hz
With fuse No
ohmic resistance 16 mΩ
integrated switch No
Logistics
Property Value
Customs tariff number 85363010
Country of origin CN
Original Packaging Bulk with 10 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
