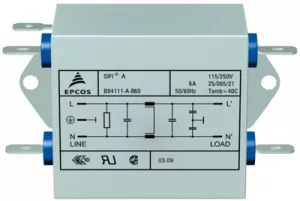

B84111F0000B116 | TDK (EPCOS)
EMC filter, 50 to 60 Hz, 16 A, 250 V (DC), 250 VAC, 650 µH, faston plug 6.3 mm, B84111F0000B116
Unit Price (€ / pc.)
31.7611 € *
Available: 9 pcs.
Total Price:
31.76 € *
Price list
Quantity
Price per unit*
1 pcs.
31.7611 €
5 pcs.
29.8690 €
30 pcs.
27.5842 €
60 pcs.
26.8107 €
120 pcs.
26.0610 €
*incl. VAT plus shipping costs
Subject to prior sale
EMC filter, design SIFI F, type TDK/Epcos B84111.
2-wire filter for single-phase systems, molded in metal case, with mounting straps on the face side; Rated voltage: 250 V AC/DC, 50/60 Hz. IEC climate category: 25/100/21. Operating temperatures: –25 to +100 °C. Leakage current: max. 0.5 mA. Rated capacitance X2/Y2: 2 x 0.1 µF and 2 x 4700 pF. Test logos: ENEC 10, UL, cUL. Connections: 6.3 x 0.8 mm tab terminals on both sides.
EMC filters with rated current of 16 A and 20 A, type B84111.
Technical attributes (type, rated current, rated inductance): B84111FB116, 16 A, 2 x 0.65 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 2 x 100 nF, Y2 2 x 4700 pF | |
| Rated current | 16 A | |
| max. operating temperature | 100 °C | |
| Version | EMC filter | |
| Connection | faston plug 6.3 mm | |
| max. frequency | 60 Hz | |
| Inductance per line | 650 µH | |
| Rated voltage (DC) | 250 V | |
| With fuse | No | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | DE |
| Original Packaging | Bulk with 30 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
