B82791H2301N001 | TDK (EPCOS)

Power line choke, radial, 30 mH, 300 mA, B82791H2301N001

Order No.: 73D9239
EAN: 4099889007527
MPN:
B82791H2301N001
B82791H2301N1
Series: B82791H
TDK (EPCOS)

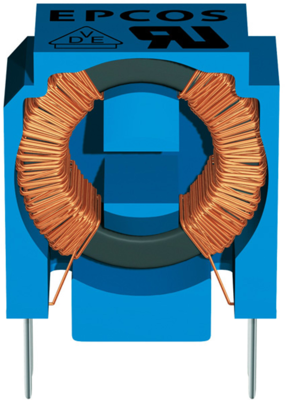

B82791H2301N001 TDK (EPCOS) Fixed Inductors Image 1
B82791H2301N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 30 mH
DC current 300 mA
Tolerance -30/+50 %
DC resistance 2.2 Ω
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.6898 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,013.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
600 pcs.
1.6898 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Power line choke, B82791H2301N001, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible
  • High resonance frequency due to special winding technique and omission of potting

Applications

  • Suppression of common-mode interferences
  • Electronic ballasts in lamps
  • Switch-mode power supplies
Technical specifications
DC current 300 mA
Saturation current 300 mA

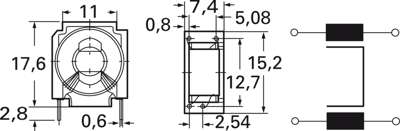

Width 7.4 mm
Height 17.6 mm
Length 15.2 mm
DC resistance 2.2 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 30 mH
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 200 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
